Advice requested on the Matchbox 1/32Lysander
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Sunday, January 21, 2018 - 08:43 AM GMT+7
Out shopping on eBay again. The Lysander bird is going to need some seatbelts. I have my fingers crossed - the shoulder belts look correct but I am not so sure about the buckles. Anybody have knowledge on the subject of early war British aircraft seat belts?

165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Sunday, January 21, 2018 - 05:51 AM GMT+7
Magnus I must admit - I enjoy the fact that the kit is as old as it is but; (relatively speaking) still as good and well detailed as it is. It has been a pleasure to build and to also add detail to this one. This construction adventure is sort of my first foray into large scale aircraft models in a very long time and I like that it did not require investing an arm and a leg to get started. (The low price leaves lots of $$$ room to purchase extra details and AM parts for the project.)

Thank you for your positive comments.


magnusf
_VISITCOMMUNITY
Stockholm, Sweden
Joined: May 02, 2006
KitMaker: 1,578 posts
AeroScale: 1,536 posts
Posted: Sunday, January 21, 2018 - 04:44 AM GMT+7
Michael! I'm following this with interest! The Matchbox 1/32 series from the late 70s were a fun bunch of kits, I wonder how they picked the subjects ! I can understand why they did the 109 but both the Sea Venom and your Lysander are fairly odd subjects. Never mind, it is something to be happy for today since I wouldn't hold my breath waiting for someone else to do one in that scale. And not a Puma helicopter either !



Magnus
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Sunday, January 21, 2018 - 04:05 AM GMT+7

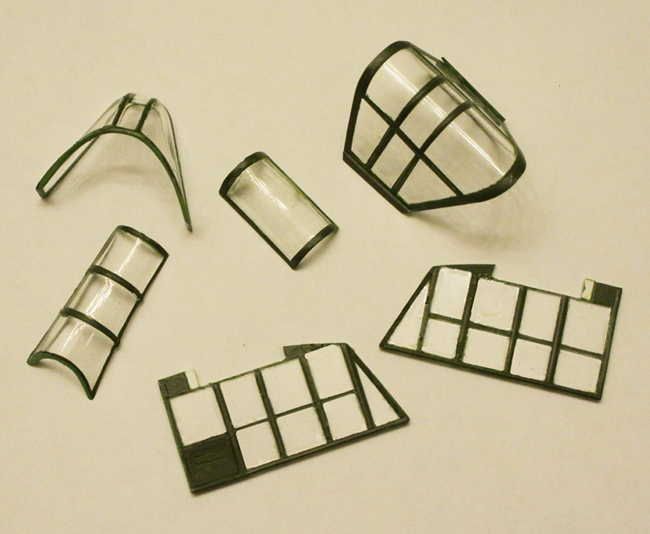

Another item for the 1/32nd Lysander that I found but failed to mention earlier: The canopy painting masks from MonteX.

I would say this is an excellent product, however I must admit this is my first time using a pre-cut mask for doing this type of glass work. (Masking the glasswork has always been my most feared aspect of building model aircraft.)

165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Saturday, January 20, 2018 - 05:39 AM GMT+7
I spent a good portion of last night looking for some photo reference on the large box ammo magazines that feed the twin Brownings in the Lysander. So far no luck. All I could find were the smaller box mags that actually hung on the sides of some guns.

Good reference on the Browning but no help on the Lysander project.



Removed by original poster on 01/20/18 - 10:36:22 (GMT).
rdt1953
_VISITCOMMUNITY
New Jersey, United States
Joined: February 06, 2015
KitMaker: 761 posts
AeroScale: 685 posts
Posted: Friday, January 19, 2018 - 03:26 PM GMT+7

Quoted Text

Just found another photo of the twin Brownings! (Still doesn't help with the gun mount.) However it does show the two large cartridge magazines which is new information.



It appears the belts pull from the bottom of the magazines. That seems strange as that would mean the full weight of the ammo belts sit on the portion of the belt being pulled out???

Anyone have any ideas.



Michael - interesting and a good observation. Although it seems unlikely, perhaps the belts do not lay in the magazines horizontally but instead are loaded in a vertical serpentine fashion. Hmm - any automatic weapons folks out there who can help ?

Richard
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Friday, January 19, 2018 - 02:57 PM GMT+7
Just found another photo of the twin Brownings! (Still doesn't help with the gun mount.) However it does show the two large cartridge magazines which is new information.



It appears the belts pull from the bottom of the magazines. That seems strange as that would mean the full weight of the ammo belts sit on the portion of the belt being pulled out???

Anyone have any ideas.

(I don't think I'm right on that. It just would not work that the belts pull from the bottom.)
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Thursday, January 18, 2018 - 05:55 PM GMT+7

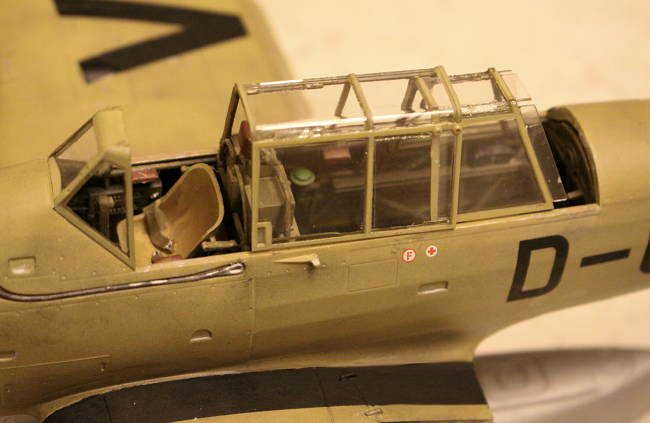

It really bothered me that the rear canopy was not deep (tall) enough to reach the groves molded in the sides of the fuselage on the model. Also the molded grooves did not extend far enough down the side of the aircraft to give the impression that the rear canopy could actually function.

The solution to both these problems was to add the slide channels to the sides of the aircraft.



165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Thursday, January 18, 2018 - 04:54 PM GMT+7
Here is where I am on building the gunner/navigator's ring. Still waiting for my twin Brownings to arrive!



Here is a photo of the actual ring:
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Thursday, January 18, 2018 - 04:36 PM GMT+7
When I saw the engine mount ring on that image of the early Lysander airframe I just knew I was going to have to add it to my model. (Even though once the fuselage is closed up you will never see it again.)

165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Wednesday, January 17, 2018 - 07:11 PM GMT+7
Pilot's cockpit coming together. - Gunner's spot is another subject - much more work to come.





165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Wednesday, January 17, 2018 - 09:10 AM GMT+7
A bit hard to see but more detail (controls and cables) have been added to the structural frame, primarily around the pilot's cockpit. Focusing now on the gunner's area and waiting somewhat anxiously for those twin Browning weapons to show up from Gaspatch and Master!





(Little or no progress on rebuilding the pilot's control panel. I am putting this off simply because this panel will still be emovable even after the two-piece fuselage is buttoned up. So it can wait till later!)
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Wednesday, January 17, 2018 - 08:47 AM GMT+7
I think my interior bracing work and detailing of the fuselage is complete. (NOT to say the detailing work on the airframe is finished!)



I plan to show both cockpit side windows in the down position. I will therefore cut some clear plastic sheet, mask it to paint the window dividers and add these to the interior of the model.


Cockpit window in the down position. First of two installed.
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Wednesday, January 17, 2018 - 05:38 AM GMT+7
I know I am jumping all around but here is an interesting image that I just found:

Complete airframe:



Shows wing spar tower but ALSO clearly shows pilot's and navigator's "rings".
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Wednesday, January 17, 2018 - 05:34 AM GMT+7
However here is a turreted Lysander that WAS built!



This aircraft never went into production - only two ever built.
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Tuesday, January 16, 2018 - 10:53 AM GMT+7
Something of interest:

Experimental Lysander with mocked up quad enclosed turret. A flying prototype was never built as it was determined that the field of fire for the turret was too limited to be effective.

165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 11:27 AM GMT+7
The beauty shot(s):


Photo credit Stephen Fox/Airliners.net




Photo credit Tucker Harris Collection

All photos posted for discussion purposes only.
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 08:27 AM GMT+7
A little sidebar: I have since added the chart table to my model. I rather enjoyed doing this small piece. A bit of trivia here - the map used is a reproduction of an actual captured German WWII map of south eastern France that I have in my historical paper collection.

(The same map can also be seen folded in the pilot's cockpit map pocket.)





165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 08:26 AM GMT+7
Milestone reached:

Lizzie's got legs! - - - Landing struts attached:


The fuselage continues to be taped together (still) because I cannot seem to stop finding bits and bobs of detailing to add the interior framework (don't know when this work will ever be complete, will it never end?) but at least the struts are now permanently attached!

Notice how this news is a real head turner for our pilot. (e.g. I thought our guy would look far more natural if his head was not posed so rigidly straight ahead so I turned his head. Now he is posing for the camera - still serious as heck - but at least he is now looking at the camera.)
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 08:09 AM GMT+7
A wee bit of background:

I went with the 1/32nd scale aircraft because up to now I have always modeled in the fairly popular armor scale of 1/35th. I figured 1/32nd was close enough that my eye would not be too offended seeing the two scales sitting next to each other. (I have always been one to want everything all in the same scale.) But now I understand why 1/48th scale aircraft are so popular.

It started when the L-O-N-G UPS box first arrived. I was kind of blown away right there. Then I opened the carton to again find a very LONG Matchbox model inside. During all this construction the size never really hit me until I attached the landing struts and just for kicks temporarily attached the wings!

Talk about BIG!

I think all future aircraft are going to have to be relegated to hanging off the ceiling. No room here on the display shelf!
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 06:15 AM GMT+7
For right or wrong I have now ordered both the Masters brass barrels AND the Gaspatch .303 Browning resin guns. We will see which I end up using.

I was attracted to the Masters barrels because the barrel and heat shield are two separate pieces therefore the undercuts in the heat shields are going to be deeper and more pronounced than the moulded resin items.

Perhaps I will end up using bits of both!
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 05:25 AM GMT+7
Beautiful!


(Photo Credit: Aircraft Photos - Used here for discussion and research only.)
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 05:11 AM GMT+7
More internal detail photos on the naked Lysander:




(Photos property of The Aircraft Restoration Co. - Used here for reference and discussion only.}

I might have to add that oil tank just ahead of the control panel.
165thspc
_VISITCOMMUNITY
Kentucky, United States
Joined: April 13, 2011
KitMaker: 6,784 posts
AeroScale: 146 posts
Posted: Monday, January 15, 2018 - 03:09 AM GMT+7
Found on line from MASTER Models: MK II British Browning .303 brass barrels in 1/32nd scale -



Link to website:

http://master-model.pl/category/air-master-132?page=4
